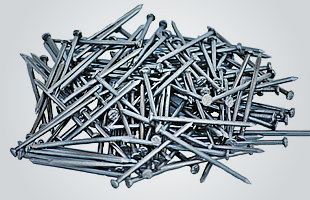

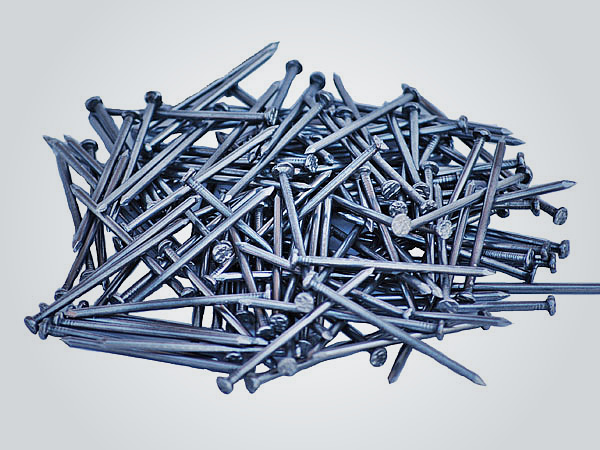

Çivi
İmalatı Yapılan Çiviler
- İnşaat Çivisi
- Galvanizli Çiviler
- Toleranslarına Uygun Üretilmiş Makina Çivisi
- Palet Çivisi
- Düz, Helical, Ring Gövdeli Yüksek Kalitede Üretilmiş Tabanca Çivileri
- Çatı Çivileri
- Tel Çivi
- Electro Galvanizli Beton ve Asfalt Çivi (5,40x7-5, 40x80-5, 40x110)
- Paslanmaz çelik, bakır, alüminyum çiviler
- Müşteri isteği doğrultusunda her tür çivi dizayn etme, üretme ve kaplama kapasitesi
Çivi Ebatları
UZUNLUK / mm | MEVCUT ÇAP / mm |
50 | 3 |
60 | 3 |
70 | 4 |
80 | 4 |
100 | 5 |
120 | 5 |
150 | 5 |
Kimyasal Bileşimi
C | Si | Mn | P | S | N | Cu | Ceq | |||||
Min | Max | Min | Max | Min | Max | |||||||
% | % | % | % | % | % | % | % | |||||
B10 | 0,05 | 0,10 | 0,08 | 0,15 | 0,35 | 0,50 | ≤ 0,040 | ≤ 0,050 | ≤ 0,012 | ≤ 0,45 | ≤ 0,500 | |
B10-K | 0,06 | 0,10 | 0,10 | 0,15 | 0,45 | 0,60 | ≤ 0,040 | ≤ 0,050 | ≤ 0,012 | ≤ 0,45 | ≤ 0,500 | |
NPS-50 | 0,15 | 0,17 | 0,12 | 0,20 | 0,80 | 0,90 | ≤ 0,040 | ≤ 0,050 | ≤ 0,012 | ≤ 0,45 | ≤ 0,500 | |
for zinc-plating* | 0,12 | 0,20 | ≤ 0,020 |
Mekanik Özellikleri
Yield strength | Tensile strength | Ratio | Elongation | Notch impact energy | ||
Re (N/mm2) | Rm (N/mm2) | Rm / Re | A10 (%) | A5 (%) | [J] | |
B10 | ≥ 300 | ≤ 450 | ≈ 1,40 | ≈ 30 | ≥ 35 | - |
B10-K | ≥ 300 | ≥ 450 | ≈ 1,40 | ≈ 30 | ≥ 35 | - |
NPS-50 | ≥ 350 | ≥ 480 | ≈ 1,35 | ≈ 30 | ≥ 20 | ≥ 27 |
- Steel Grades TS2348 EN10016
- Carbon Steel
- SAE 1006
- ISO 8457-1-2-EQV
- EN 10016-2-EQV
- BS 10016-2-EQV
- DIN 10016-2-EQV
- NF A35-051-2 NF
- UNS G10250
- ASTM M1031
- SAE M1031
- UNS G10310
- ASTM M1044
- SAE M1044
- UNS G10440
- SAE 1005
- AISI 1005
- UNS G10050
DATA TABLE FOR:STEEL GRADES:CARBON STEEL:SAE 1006
Chemical composition % of the ladle analysis of grade SAE 1006
Mechanical properties of grade SAE 1006
Technological properties of grade SAE 1006
Hardness and heat treatment specification of grade SAE 1006
Annealing hardness HBS |
Cold pull hardness HBS |
Preheating temperature ℃ |
Quenching temperature ℃ | Holdingtime min |
Hardening medium | Temper temperature ℃ |
After tempering hardness ≥HRC | |
salt-bath furnace | controlled atmosphere furnace | |||||||
235 | 262 | 788 | 1191 | 1204 | 5~15 | air cooling | 522 | 60 |
Steelplate/Sheet thickness / mm | σb MPa | σs ≥/MPa | δ Samples from the standard for 50 mm (2 in) | 180 °of cold bending test | |
longitudinal | horizontal | ||||
Hot-rolled/Cold rolling:5 - 150 | 520 | 415 | 16~18 | 2a | 3.5a |
- SAE 1008
- ISO 8457-1-2-EQV
- EN 10016-2-EQV
- BS 10016-2-EQV
- DIN 10016-2-EQV
- NF A35-051-2 NF
- UNS G10310
- ASTM M1044
- SAE M1044
- UNS G10440
- SAE 1005
- AISI 1005
- UNS G10050
- SAE 1006
- AISI 1006
- UNS G10060
DATA TABLE FOR:STEEL GRADES:CARBON STEEL:SAE 1008
Chemical composition % of the ladle analysis of grade SAE 1008
Mechanical properties of grade SAE 1008
Technological properties of grade SAE 1008
Hardness and heat treatment specification of grade SAE 1008
Annealing hardness HBS | Cold pull hardness HBS | Preheating temperature ℃ | Quenching temperature ℃ | Holding time min | Hardening medium | Temper | After tempering hardness ≥HRC | |
salt-bath furnace | controlled atmosphere furnace | |||||||
235 | 262 | 788 | 1191 | 1204 | 5~15 | air cooling | 522 | 60 |
Steelplate/Sheet thickness / mm | σb MPa | σs ≥/MPa | δ Samples from the standard for 50 mm (2 in) | 180 °of cold bending test | |
longitudinal | horizontal | ||||
Hot-rolled/Cold rolling:5 - 150 | 520 | 415 | 16~18 | 2a | 3.5a |
- SAE 1010
- ISO 8457-1-2-EQV
- EN 10016-2-EQV
- BS 10016-2-EQV
- DIN 10016-2-EQV
- NF A35-051-2 NF
- UNS G10050
- SAE 1006
- AISI 1006
- UNS G10060
- SAE 1008
- AISI 1008
- UNS G10080
- SAE 1009
- AISI 1009
- UNS G10090
DATA TABLE FOR:STEEL GRADES:CARBON STEEL:SAE 1010
Chemical composition % of the ladle analysis of grade SAE 1010
Mechanical properties of grade SAE 1010
Technological properties of grade SAE 1010
Hardness and heat treatment specification of grade SAE 1010
Annealing hardness HBS |
Cold pull hardness HBS |
Preheating temperature ℃ |
Quenching temperature ℃ | Holdingtime min |
Hardening medium | Temper temperature ℃ |
After tempering hardness ≥HRC | |
salt-bath furnace | controlled atmosphere furnace | |||||||
235 | 262 | 788 | 1191 | 1204 | 5~15 | air cooling | 522 | 60 |
Steelplate/Sheet thickness / mm | σb MPa | σs ≥/MPa | δ Samples from the standard for 50 mm (2 in) | 180 °of cold bending test | |
longitudinal | horizontal | ||||
Hot-rolled/Cold rolling:5 - 150 | 520 | 415 | 16~18 | 2a | 3.5a |
